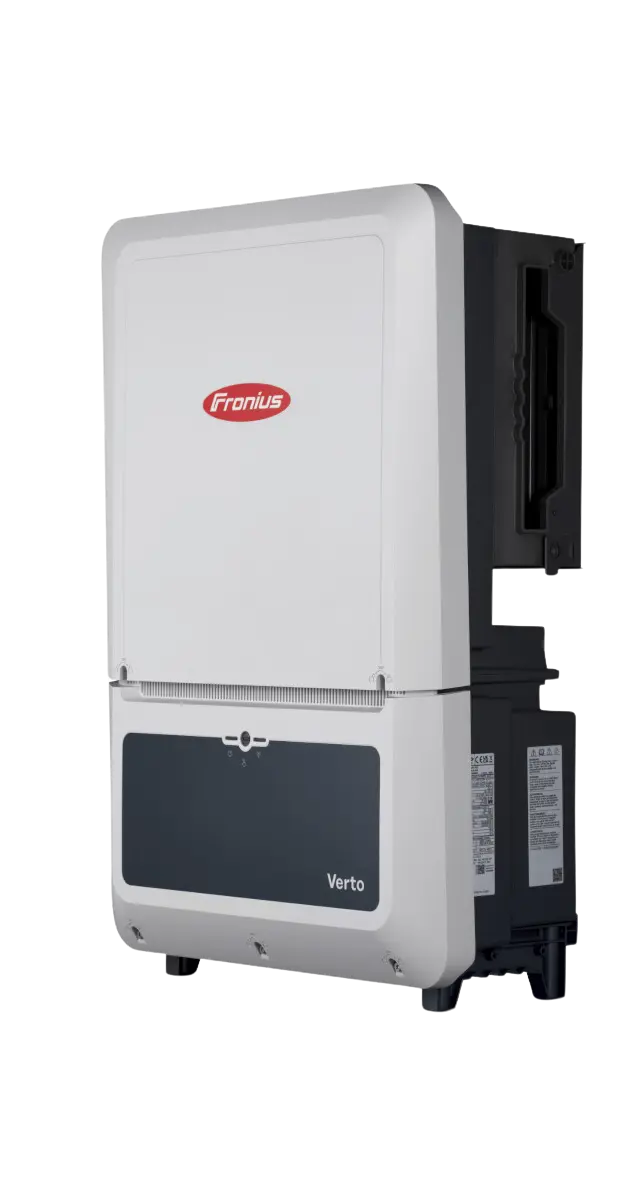

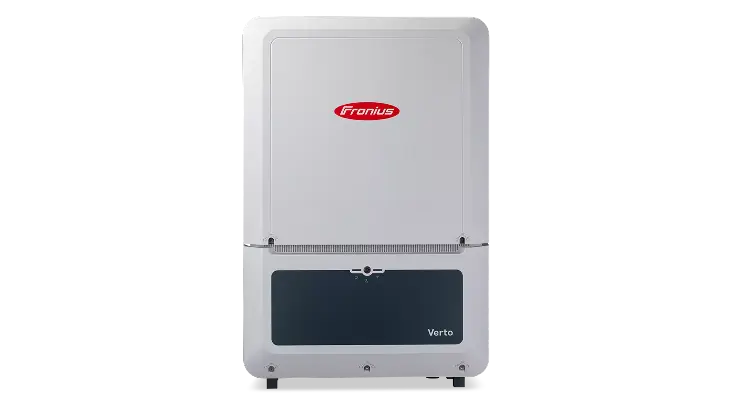

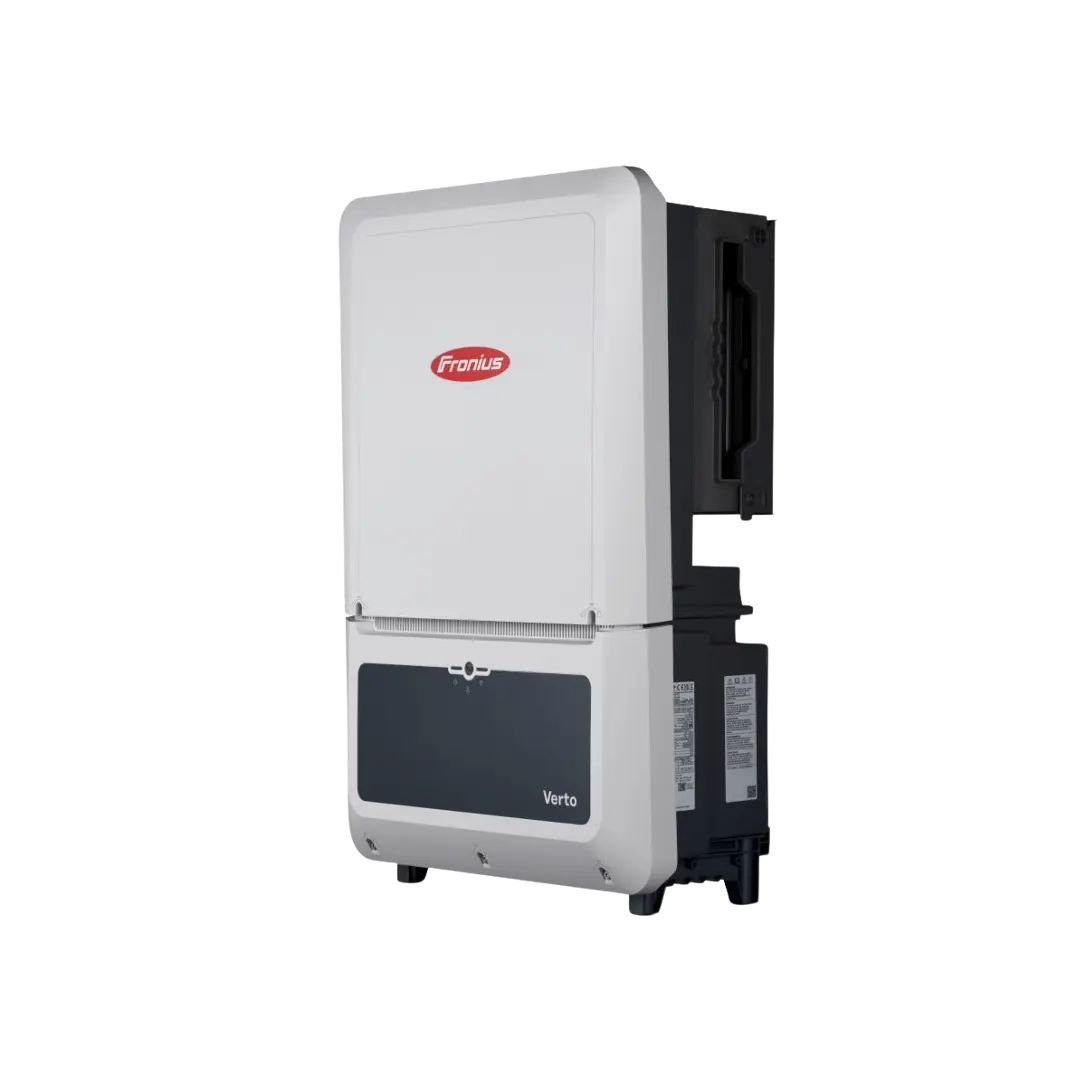

Fronius Verto

Introducing the Future of Solar Energy

The Fronius Verto is a versatile 3-phase Grid-tie inverter designed for optimal performance across various installations.

Key Specifications:

• Power Categories: Available in 27 kW, and 33.3 kW configurations.
• MPPT Trackers: Equipped with 4 high-current MPPTs, allowing for flexible solar module configurations.
• MPPT Voltage Range: Operates between 150 V and 870 V, accommodating a wide range of solar panel setups.
• Maximum DC Voltage: Capable of handling up to 1,000 V DC, ensuring compatibility with high-voltage systems.
• Cooling System: Features an active cooling system for enhanced performance and longevity.
• Protection Rating: Rated at IP 66, making it suitable for both indoor and outdoor installations.
• Installation Flexibility: Can be wall-mounted or installed flat, providing versatility in installation options.

Safety Features

The Fronius Verto includes built-in safety components such as:

• Type 1 + 2 surge protection devices (SPD) on both AC and DC sides.
• An integrated Arc Fault Circuit Interrupter (AFCI) to protect against electrical arcs.

Additional Features

• Energy Sector Integration: Supports easy integration with charging stations and heat pumps via Modbus RTU, Modbus TCP, or Solar API.
